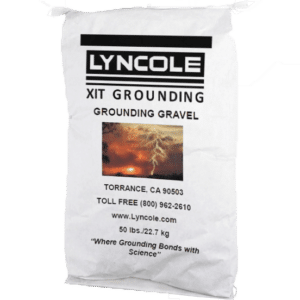

Grounding Gravel by Lyncole

Particularly beneficial for systems that require ease of installation and a long useful life. Environmentally safe, meeting NSF Standard 60 requirements for long-term contact with drinking water.

The Quick Backfill Alternative

Our Lyncole Grounding Gravel is a pelletized form of Ground Enhancement that is used for many applications, none more popular than earth grounding. Our Grounding Gravel has all the qualities of an excellent backfill material for grounding electrodes and conductors.

Lyncole Grounding Gravel is highly conductive, which improves the grounding system’s performance. Its nearly-neutral pH also promotes a long life of grounding electrodes and/or grids by protecting them from potentially corrosive surrounding soil. This is one of the factors that allow Lyncole’s XIT® Grounding Systems to be warranted for 30 years and 25 Ohms, with a life expectancy of 50 years.

Benefits of Grounding Gravel

Provides good electrical bond with earth
Very electrically conductive— 240 ohms/cm
Helps to lower ground system resistance
Protective of copper
Provides a pH-balanced environment, inhibiting corrosion
Environmentally safe, having met the NSF Standard 60 requirement

Simple Installation

Easily installed, simply pour in and hose down
Lyncole Grounding Gravel® does not need to be mixed into a slurry
Instead, pour half a bag into the desired hole or trench, followed by 2-3 gallons of water
After 5 minutes the water should be absorbed, repeat this process with the other half-bag
