The Lyncole XIT® Grounding System

XIT Straight Shaft

xit straight shaft | grounding products | vfc lp

The first and original patented electrolytic grounding system.

The continuously advancing telecommunications, data center, computer, and electronics industries require the most advanced systems available. Ahead of its time, the UL-listed, self-moisturizing and maintenance-free XIT Grounding System provides low resistance in diverse climates around the world, without harmful effects on the environment. This system features:

Standard Models:

  • K2-10CS: 10′ Straight Shaft model
  • K2-20CS: 20′ Straight Shaft model

L-Shaped Model

l-shaped model | grounding products | vfc lp

For environments that do not allow Straight Shaft installation.

The Lyncole XIT Grounding System is available in an “L”-Shaped model for environments that don’t allow a Straight Shaft installation. The “L”-Shaped model has the same features and benefits of the Straight Shaft model.

Standard Models:

  • K2L-10CS: 10′ “L”-Shaped model with 10′ horizontal length and 3′ vertical riser
  • K2L-20CS: 20′ “L”-Shaped model with 20′ horizontal length and 3′ vertical riser

XIT Deep Well

xit deep well | grounding products | vfc lp

Fully submerged application.

The d4-11wW Deep Well electrode length is 11 feet. The top end of the electrode is an 8.5-inch long section made of a 2-inch diameter type K copper tube that is soldered to a reducer to join the lower 10-foot section made of a 4-inch diameter type K hard tube.

The K4-11DW is permanently capped on the top and bottom. This deep well electrode is not filled with Calsolyte salts, instead it has holes, allowing the tube to fill with water.

Why Lyncole XIT?

Lyncole XIT® Grounding Materials

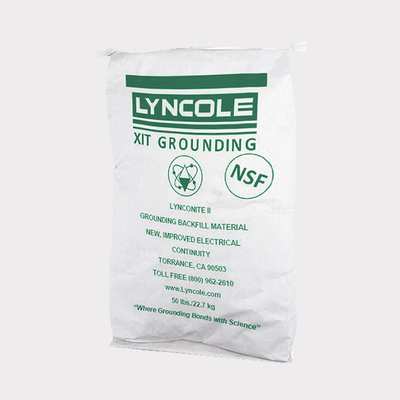

Lynconite II Backfill Material

lynconite ii backfill material | grounding products | vfc lp

Improves ground system performance.

Lynconite II is used as a backfill to surround the XIT systems during installation. It is based on natural clay formed by volcanic action. Specially processed to be very electrically conductive, Lynconite II enhances the performance of the grounding system. It is mixed with water (14gals./bag) until a slurry is formed (similar to pancake batter) then pumped or poured around the electrode in the hole.

Benefits include:

  • Highly conductive
  • Improves ground system performance
  • Protects the copper-based XIT Rod
  • Establishes an electrical bond between the XIT Rod and Earth
  • Approved by The National Sanitation Foundation

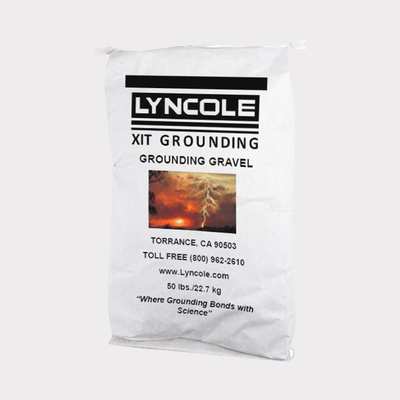

Lyncole XIT Grounding Gravel

lyncole xit grounding gravel | grounding products| vfc lp

Lyncole’s Grounding Gravel™ is an alternative, and ground enhancement material, for use when installing Lyncole’s XIT™ Grounding systems. This pelletized form of Lynconite is particularly beneficial for installations involving standing water and can be beneficial for use at other times. Although used in many different applications, it is extremely beneficial for grounding applications.

Grounding Gravel™ is highly conductive which improves the ground system performance. It’s nearly neutral pH also promotes a long life of grounding electrodes and/or grids by protecting them from surrounding soil which may be very corrosive. This is one of the factors that allow Lyncole’s XIT™ grounding systems to be warranted for 30 years with a life expectancy of 50 years. Each 50 lb. bag provides approximately 1.0 cubic feet of backfill material.

Benefits Include:

  • Easily Installed
  • Provides Good Electrical Bond to Earth
  • Very Conductive Electrically
  • Very Protective of Copper
  • Lowers Ground System Resistance

Ground Bars, Cover Boxes, & Other Products

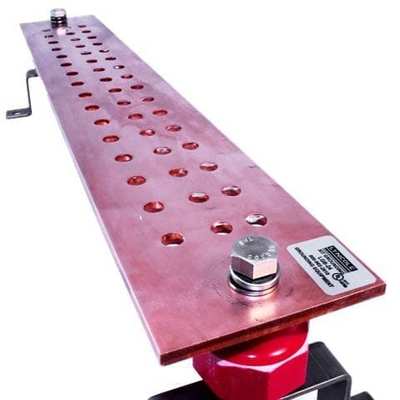

XIT Spaced Ground Bars

ul listed nema spaced ground bars by lyncole | grounding products | vfc lp

As an essential component of our “one stop shop” in grounding, our NEMA Spaced Ground Bars are built just for you. We offer customized hole patterns and sizes, mounting brackets and insulators, all with quick turnaround based on US manufacturing.

Speciality bus bars are also available, with the same level of customization upon request. Bus bars can come in lengths in excess of 10 ft., with exothermically welded tails.

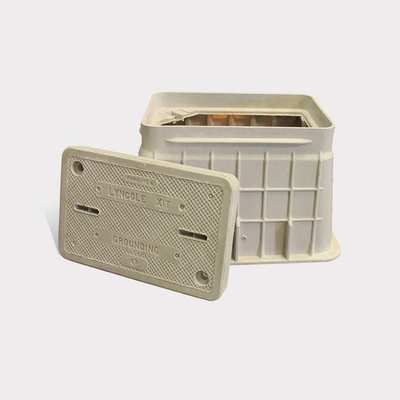

Cover Boxes & More

cover boxes and other grounding products | vfc lpProtective covers for your XIT System.

These protective cover boxes are made with concrete, polyplastic, or Fiberlyte material and can be used for both indoor and outdoor protection for your XIT System. All cover boxes include a Fiberlyte, concrete, or cast iron vented lid to allow air to flow to the breather holes of the XIT System.

Standard Models:

  • Model XB-12F Light Traffic, 9lbs
  • Model XB-12 Medium Traffic, 53lbs
  • Model XB-22 Heavy Traffic, 80lbs

At Lyncole, we have all of the grounding solutions needed for your project. Click “Cover Boxes and More”  to read about our other offerings such as True Test Well, Blackburn Grounding Connectors, and VFCWeld Exothermics. Want more? Order our complete product catalog for free below!

Get Our Complete Product Catalog

Request our product catalog for a full list of lightning protection, grounding solutions, and facility protection products.
